AC-HP Hand-push Pre-marker

AC-HP hand push pre-markerAC-HP hand push pre-marker can mark the pre-marking freely according to the requirements of construction and can accomplish 1 - 4 lines independently, greatly improves the construction efficiency. Personalized handle bar design conforming to ergonomic requirements, it's height can be adjusted.

EMAIL: This email address is being protected from spambots. You need JavaScript enabled to view it.TEL: +86-371-55635088

Technical Data

Model AC-HP
Pre-marking equipment Two working arms equiped with wheels
Pre-marking quantity 1 - 4 lines
Dimension 1200 mm × 700 mm × 1300 mm (guide rod, water dispenser rod are not included)
Weight 100 kg
Optional system Roll booster or seat trailer

Features

1. The cost of the vehicle input is usually expensive if pre-marking by vehicle before the road marking, and the marking work is often affected because of the pre-marker's not timely in place.
2. AC-HP hand-push pre-marker can do pre-marking line freely according to the requirements of construction and can accomplish 1~4 lines independently, which greatly improves the construction efficiency.
3. Alloy chassis, compact structure, high-speed bearing, corrosion-resistant rubber tires ensure operation flexible, better durability.
4. The length of working arm could be freely adjusted according to actual need.
5. Lockable direction wheel ensure machine's moving straight, operation flexible in a curve road.
6. Personalized handle bar design conforming to ergonomic requirements, height can be adjusted according to the operator's needs.

Pictures

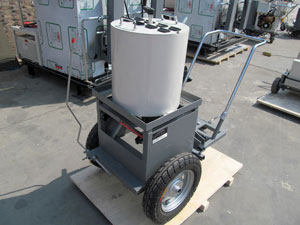

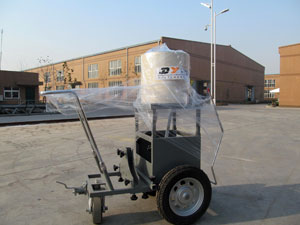

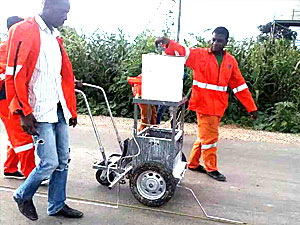

AC-HP Hand-push Pre-marking MachineAC-HP Hand-push Pre-marking MachineAC-HP Hand-push Pre-marking Machine
