AC-PS Primer Sprayer

AC-HP Primer SprayerAC-PS Primer Sprayer is used to evenly spray primer onto the ground, to enhance the adhesion of thermoplastic road marking paint and ground.

EMAIL: This email address is being protected from spambots. You need JavaScript enabled to view it.TEL: +86-371-55635088

Technical Data

Model AC-PS
Engine 6.0 HP four stroke air cooled gasoline engine
Air compressor 0.2 m3/min piston air compressor
Flow 3.5 L/min
Primer tank 33 L
Spray gun One manual spray gun
Spray width 100 mm - 450 mm
Dimensions (L*W*H) 1380 mm × 1000 mm × 900 mm
Weight 113 kg

Features

1. Piston type abrasion resistance air compressor engine ensures the flow much larger and the pressure more stable.
2. Primer storage pot is equipped with pressure safety valves, with a sieve in the feeding port.
3. New type spray gun controlled by brake handle, with hard side columnar reverse wash nozzle, ensures removing plug conveniently and quickly; the non-arc nozzle ensures the baseline precise alignment.
4. A firm welded frame; chrome-plated or corrosion resistant coating sprayed surface; high-speed bearing ensures the whole machine light and convenient to move. Front wheels and rear wheel are special natural modified rubber wheels.
5. Guide rod can be adjusted freely in all directions, up, down, left or right.
6. The height of handle bar can be freely adjusted according to the needs of machine operator.
7. Rear wheel directional device is lockable that ensures the primer spraying machine moving in straight lines and turning freely in curved road.

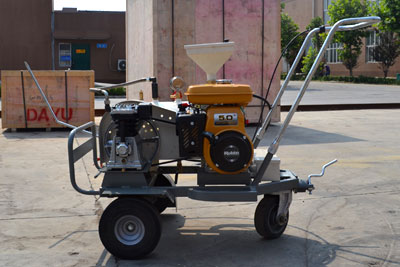

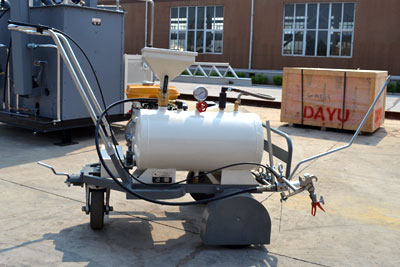

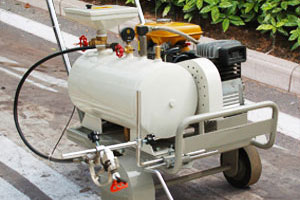

Pictures
