DY-HAL-V/VI Hand-push Cold Paint Airless Road Marking Machine

DY-HAL-V/VI Hand-push Cold Paint Airless Road Marking MachineDY-HAL-V/VI hand-push cold paint airlese road marking machine mainly used for small-scale road line marking work such as zebra marking, lines in parking lots and athletic fields, special characters and arrow indications. Type V: without glass beads system. Type VI: spraying type glass beads system.

EMAIL: This email address is being protected from spambots. You need JavaScript enabled to view it.TEL: +86-371-55635088


Category: DAYU Road Marking Machine > Road Marking Equipment > Cold Paint Road Marking Machine

Technical Data

Model DY-HAL-V DY-HAL-VI
Engine Kohler or Robin 6.0 HP gasoline engine
Applied paint Cold solvent paintCold solvent, water-based paint
Glass beads bin WithoutSpraying type
Paint pump Diaphragm type; Maximum pressure: 20 MPa; Flow: 4.5 L/min
Spray gun Double manual spraying guns
Marking width 50 mm - 450 mm (adjustable)
Dimensions (L*W*H) 1445 mm × 1100 mm × 890 mm1445 mm × 1140 mm × 910 mm
Weight 130 kg150 kg
Optional system Roll booster, warning light and lighting lamp

Features

Equipped with alloy chassis, high-speed bearing and inflatable tyre, compact in structure which ensures flexible and convenient operation.
New high-pressure airless diaphragm pump with big flow and stable pressure ensures efficient and high-quality road line marking work.
Lockable wheel steering device ensures the marking machine work in straight line or change direction on curving road freely.
Marking width can be adjusted according to user's demand and the user can add a roll booster to make the machine be self-propelled.
The user can also ask for stainless steel spray system to use water-borne paint or microelectronics control system for automatic control.
Optional equipments: roll booster, warning light and light.

Pictures

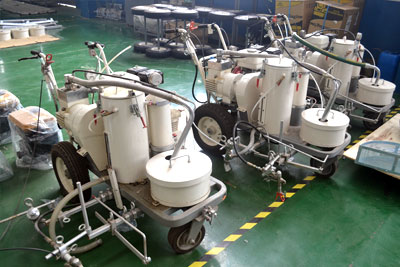

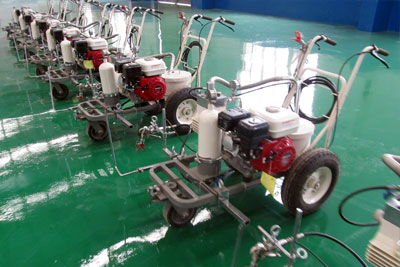

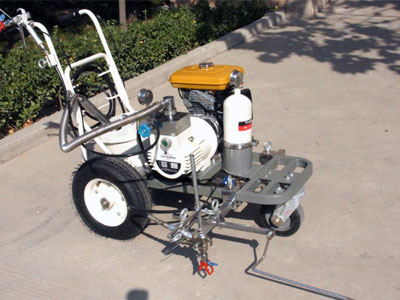

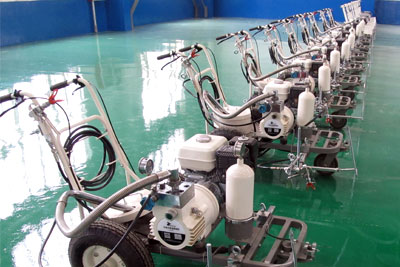

DY-HAL cold paint road marking machineDY-HAL cold paint road marking machine 01DY-HAL cold paint road marking machine 02
