DY-HPTP Hand-push Thermoplastic Screeding Pedestrian Road Marking Machine

DY-HPTP Hand-push Thermoplastic Screeding Pedestrian Road Marking MachineDY-HPTP thermoplastic pedestrian road marking machine used for marking pedestrian or zebra line by pull the machine. With simple structure, it is easy and convenient to operate. Marking width: 350 mm - 600 mm, can be customized according to customer's requirements.

EMAIL: This email address is being protected from spambots. You need JavaScript enabled to view it.TEL: +86-371-55635088


Category: DAYU Road Marking Machine > Road Marking Equipment > Thermoplastic Road Marking Machine

Technical Data

Model DY-HPTP
Heating Mode LPG, energy-saving burner
Paint tank capacity 30 L
Glass beads bin 11 L
Marking equipment Manual screeding marking shoe, standard configuration 450 mm
Marking width 350mm, 400mm, 450mm, 500mm, 600mm (optional)
Marking thickness 1.8 mm - 3.0 mm (adjustable)
Dimensions (L*W*H) 1000 mm × 720 mm (depends on the size of the marking shoe)× 860 mm
Weight 140 kg (400mm marking shoe)

Features

Perfect equipment for pedestrian road marking construction.
The screeding marking shoe makes the marking perfectly straight and beautiful.
The automatic quantitative dispenser which is synchronous with the paint screeding system makes the glass beads dispensing more evener and economic.
The four-wheel structure makes sure the straight walking.

Pictures

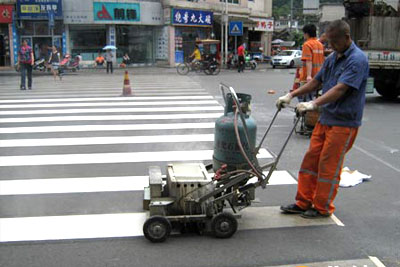

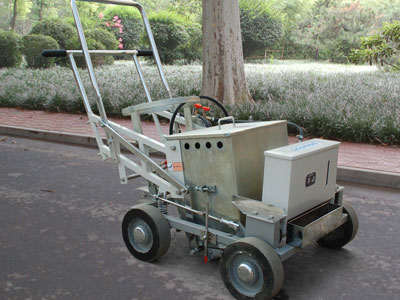

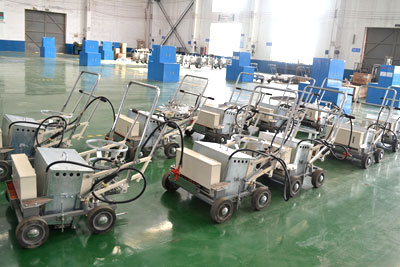

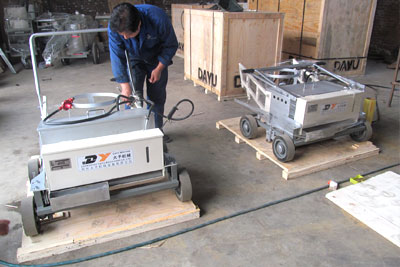

DY-HPTP thermoplastic pedestrian road marking machineDY-HPTP thermoplastic pedestrian road marking machine 01DY-HPTP thermoplastic pedestrian road marking machine 02
