AC-STC Small Driving type Two-Component Paint Road Marking Machine
AC-STC road marking machine is a small driving type two-component road marking machine, used for highway and urban area road line marking. This kind of thick road line coating, has good abrasion resistance and long service life.
EMAIL: This email address is being protected from spambots. You need JavaScript enabled to view it.TEL: +86-371-55635088
Category: ACE Road Marking Machine > Road Marking Equipment > Two Component Road Marking Machine
Technical Data
| Model | AC-STC |
| Engine | Kohler 18HP or Honda 20HP gasoline engine |
| Air compressor | 0.6m3/min |
| Paint tank capacity | 170 L ×2 |
| Glass beads bin | 52 L |
| Paint pump | Equipped with double high-pressure airless plunger pump; Maximum pressure:25MPa; Single pump flow:12.5L/min |
| Spraying gun | Double pneumatic spray guns, one manual spray gun |
| Control system | Digital intelligent control system |
| Applied paint | Cold-solvent paint and water-based paint |
| Spraying width | 50-500mm(adjustable) |
| Dimensions (L*W*H) | 2900mm×1600mm×2400mm |
| Weight | 682kg |
| Optional system | Guide warning screen, pre-marking system, trailer, swing type, screeding type |
Features
AC-STC road marking machine is a small driving type two-component road marking machine, used for highway and urban area road line marking. This two component paint road marking machine has good applicability for the cold spray paint, which can be applied to high viscosity and high solid content and mixed quartz sand or glass bead or other aggregate paint. This kind of thick road line coating, has good abrasion resistance and long service life.
1. Imported oil pressurized continuously variable speed transmission with automatic brake device. The back wheels are equipped with a differential speed gearing to ensure it to drive freely around the curve and change directions timely.
2. The welded making shoe is made of special steel sheet that is impact-resistant and anti-oxidation.
3. Paint tank is made of stainless steel or cold-rolled anti-oxidation materials.
4. Pressurized glass beads bin with windows is observable and the pressure, flow rate and spray width of glass beads spraying guns can be freely adjusted to ensure the spraying glass beads firmer, evener and more economical.
5. Equipped highlight warning light marks the night marking operation more convenient. The warning lights can freely adjust its flicker frequency, greatly improving the marking operations' safety.
6. The core control unit of this system is a PLC (programmable logic controller) which brings the micro-electronic intelligent control into effect to make its performance more stable and structure more compacted.
7. A firm welded, four-wheel chassis structure, the hydraulic steering can freely control directions, and the stable brake system makes the driving much safer.
8. The extractable guide rod can change directions freely to up, down, left or right.

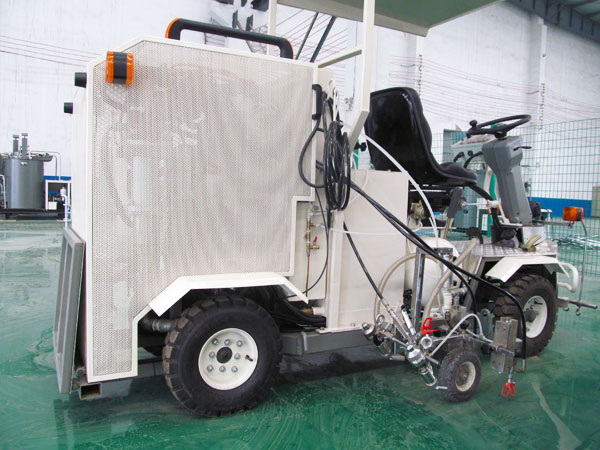

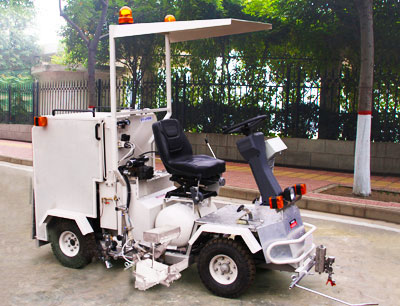

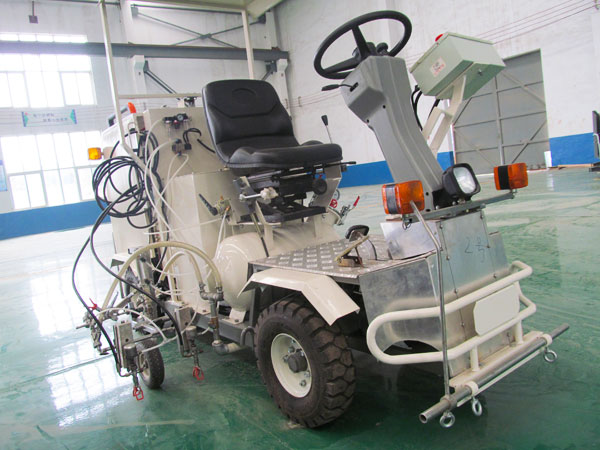

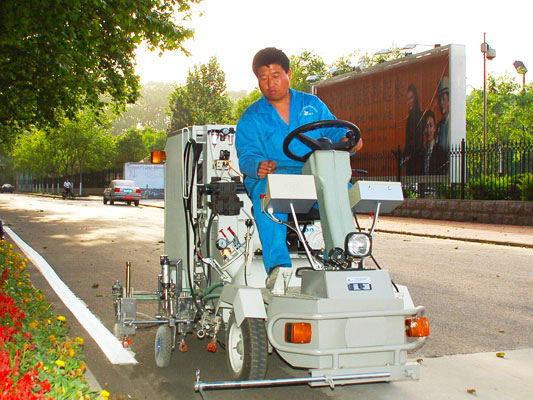

Pictures
