AC-TT-I/II Truck-trailer
AC-TT-I/II truck trailer is a trailer transportation vehicle which is equipped with pneumatic (or hydraulic) brakes, locking height adjustments device on the junction with the main drive vehicle, make the transportation of medium and large road marking machines more convenient during construction.
EMAIL: This email address is being protected from spambots. You need JavaScript enabled to view it.TEL: +86-371-55635088
Technical Data
| Model | AC-TT-I | AC-TT-II | ||||
| 3600 | 5400 | 8100 | 8100 | 18000 | 22500 | |
| Load capacity | 3600 kg | 5400 kg | 8100 kg | 8100 kg | 18000 kg | 22500 kg |
| Width | 2100 mm | 2100 mm | 2100 mm | 2438 mm | 2438 mm | 2591 mm |
| Deck length | 4800 mm | 4800 mm | 6000 mm | 7200 mm | 7200 mm | 8400 mm |
| Load height | 510 mm | 550 mm | 597 mm | 838 mm | 813 mm | 813 mm |
| Axle | 2 | 2 | 3 | 2 | 2 | 3 |
| Hitch adjustable range | 432-546 mm | 470-584 mm | 445-629 mm | / | / | / |
| Tilted deck angle | / | / | / | 12° | 12° | 12° |
Features

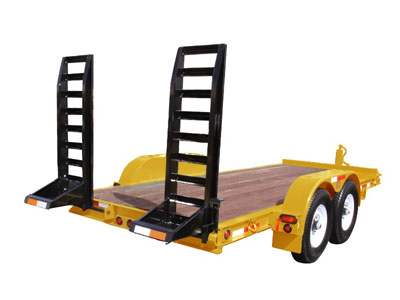

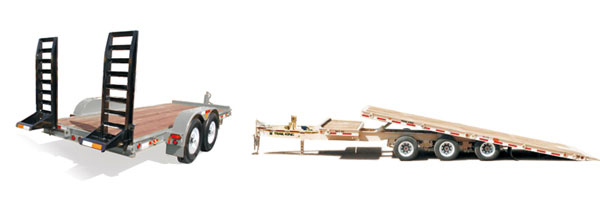

Type I is equipped with movable loading and unloading ramp at the rear. The main purpose is to make it convenient for the transportation of the big or middle size marking machine during the construction.
Type II is equipped with carriage automatic lifting devices to deal with the loading, unloading and transportation difficulties of these machines, which greatly improves the efficiency.
